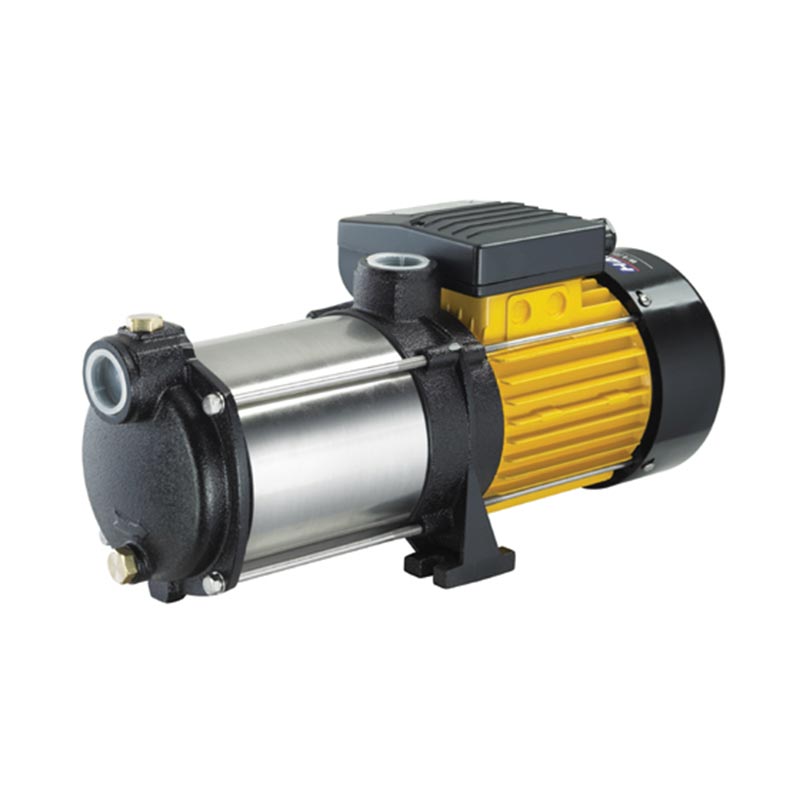

Stainless Steel Self-Priming Horizontal Multistage Water Pump

The TRUPOW Stainless Steel Self-Priming Horizontal Multistage Water Pump is an ideal complement to home water supply systems, specifically optimized for clean water transfer in household and gardening scenarios. It efficiently handles the pressurization and transfer of clean water from wells, rainwater, and domestic water sources, effectively solving water flow insufficiency problems in home water supply and garden irrigation.

The pump's key highlight is its excellent self-priming capability; it can stably pump water even in environments containing air, without requiring additional venting.  Combined with a silent operation design, it produces very low noise during operation, minimizing disturbance to the home and surrounding environment.  Furthermore, its low-energy consumption technology effectively reduces energy costs over the long term, making it a preferred pump product for civil applications. Additionally, the pump body should be installed in a closed environment, or at least protected, to prevent damage from harsh weather conditions.

Core Configuration and Performance Parameters

1. Motor Parameters

- Motor Type: Two-pole induction motor, rotational speed up to 2850 rpm, powerful and stable operation

- Insulation Class: B/F class, suitable for various working environments, outstanding stability

- Protection Class: IP44, excellent waterproof performance, suitable for outdoor use

- Protection Function: Built-in automatic thermal overload protection, effectively preventing motor overheating and burnout, extending equipment lifespan

- Voltage Specification: Single-phase 220V/50Hz, 60Hz specifications can be customized upon request

- Operating Mode: Supports continuous operation, meeting high-intensity and long-term conveying needs

2. Operating Conditions

- Liquid Temperature: Up to 60℃, suitable for conveying clean water at normal and medium-low temperatures

- Ambient Temperature: Up to 40℃, suitable for most civil and general industrial environments

- Maximum Suction Head: Up to 8m, capable of efficiently pumping water from deep wells, reservoirs, and other water sources

Material and Craftsmanship Advantages

TRUPOW always adheres to the principle of "quality first." As a professional pump manufacturer, the core components of its Stainless Steel Self-Priming Horizontal Multistage Water Pump are made of high-quality materials, and the entire production process is strictly controlled by a professional factory, ensuring the durability and operational stability of the product and preventing potential failures from the source. The specific material configuration is as follows:

- Pump body and motor bracket: Cast iron and stainless steel combination material, possessing excellent corrosion resistance and wear resistance, effectively extending the product's service life and adapting to various water quality environments.

- Motor casing: Aluminum alloy material, lightweight and with outstanding strength, effectively supporting the stable operation of the motor, while also providing certain heat dissipation performance.

- Impeller: PPO or stainless steel material, optimizing water flow efficiency, reducing energy consumption, and improving wear and corrosion resistance.

- Motor shaft: Stainless steel material, stable and reliable transmission, not easily deformed or rusted, ensuring long-term efficient operation of the equipment.

- Mechanical seal: Carbon/ceramic material, excellent sealing performance, effectively preventing water leakage, ensuring normal operation of the pump body, and reducing maintenance costs.

Wide Range of Applications

This Stainless Steel Self-Priming Horizontal Multistage Water Pump, with its high-pressure output, high head, and low energy consumption characteristics, is suitable for various applications in civil, industrial, and agricultural fields. Specific applications include:

- Home and civil applications: Used in conjunction with pressure devices to achieve pressurized water supply and distribution for homes, meeting daily water needs such as showering, washing machine operation, and toilet flushing; can be used in rainwater harvesting systems to reuse collected rainwater, saving energy and protecting the environment.

- Gardening and agricultural applications: Suitable for agricultural irrigation, garden watering, and other scenarios, efficiently transporting water to ensure the water supply needs of crops and plants.

- Industrial and other applications: As a general-purpose water pump, it can be used in industrial high-pressure water supply systems, swimming pool water supply, etc., adapting to medium and low-intensity industrial transportation needs.

Supply and Quality Assurance

TRUPOW, a professional pump supplier from China, focuses on the research and development and production of high-quality Stainless Steel Self-Priming Horizontal Multistage Water Pumps.  We adopt a factory-direct supply model, eliminating intermediaries and providing customers with cost-effective products. We fully support OEM customization services, adjusting product specifications according to customer needs, and providing free samples for initial testing and verification.

In terms of order supply, we set flexible minimum order quantities to meet the needs of both large-volume and small-volume customers, accommodating the purchasing needs of various clients. Each water pump comes with a 2-year warranty.  Leveraging an efficient global logistics network, we ensure fast worldwide delivery and promptly respond to customers' supply needs.

As a trusted manufacturer, TRUPOW is committed to achieving the optimal balance between cost and quality.  Through robust structural design and high-quality material selection, we ensure our products can withstand continuous, high-intensity operation, providing long-term value to our customers and earning the recognition and trust of clients worldwide.

PARAMETER DATA:
