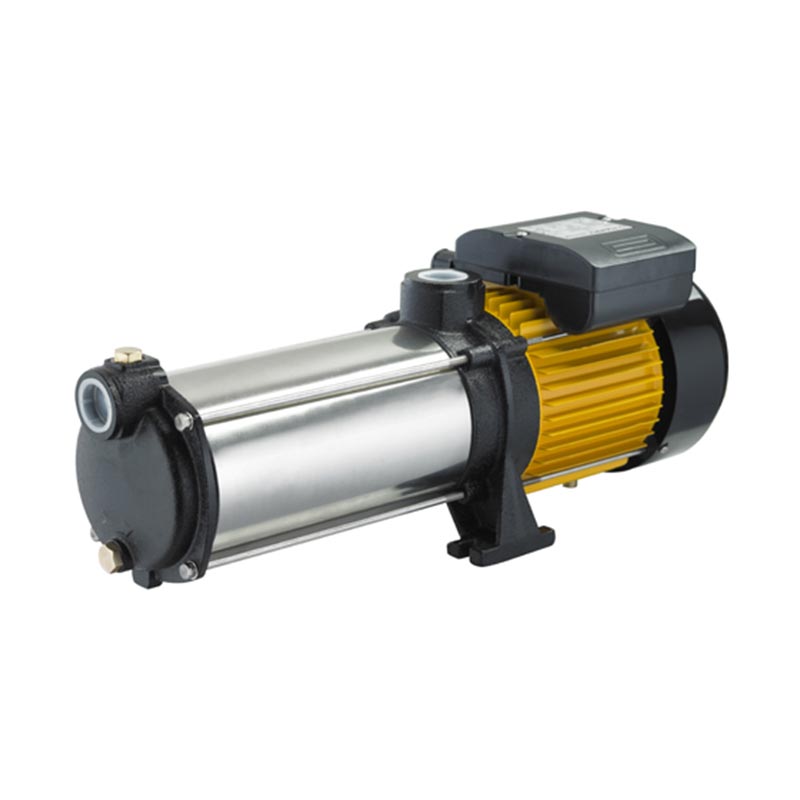

Multi Stage Water Pump Auto Garden Household Rain Tank Irrigation

The TRUPOW Multi Stage Water Pump Auto Garden Household Rain Tank Irrigation is an ideal complement to home water supply systems, focusing on providing efficient and reliable clean water delivery services for homes, gardens, and light commercial settings. It features a 2850 rpm dual-pole induction motor with built-in thermal protection to effectively prevent motor overheating and ensure long-term stable operation. Optimized by professional engineers, this water pump can operate normally even in conditions containing air, running quietly and with high energy efficiency.  For installation, it is recommended to place the pump indoors or in an area protected from harsh weather to further extend its service life.

Core Advantages

1. Wide Adaptability and Flexible Applications

The Multi Stage Water Pump Auto Garden Household Rain Tank Irrigation is suitable for clean water applications, including those with potential air content, and is compatible with various liquids that do not chemically react with the pump body materials, eliminating concerns about media compatibility. Its core application is for residential and light commercial use, suitable for water pressure boosting and distribution in pressure systems, and efficiently adaptable to rainwater harvesting systems and garden irrigation needs. It can also be used as a general-purpose pump for civil and industrial applications, such as high-pressure water supply systems, agricultural irrigation, and swimming pool equipment, achieving multi-purpose functionality.

2. High-Quality Materials and Outstanding Durability

TRUPOW consistently adheres to the principle of "quality first." As a professional manufacturer, all core components of its multi-stage water pumps are made of high-quality materials, and the production process is strictly controlled by a professional factory, ensuring product durability and stability. The specific material configuration is as follows:

- Pump body and motor bracket: Cast iron + stainless steel material, possessing excellent corrosion resistance and wear resistance, effectively extending the product's service life;

- Motor casing: Aluminum alloy material, lightweight and with outstanding strength, providing stable support for motor operation;

- Impeller: PPO or stainless steel material, ensuring high water delivery efficiency and reducing energy loss;

- Motor shaft: Stainless steel material, providing stable and reliable transmission and preventing damage;

- Mechanical seal: Carbon/ceramic material, with excellent sealing performance, effectively preventing water leakage and ensuring normal operation of the water pump.

3. Excellent performance, stable and energy-efficient operation

The Multi Stage Water Pump Auto Garden Household Rain Tank Irrigation uses a two-pole induction motor with a speed of up to 2850 rpm, insulation class B/F, and protection class IP44, offering excellent waterproof performance and suitable for outdoor use. It features built-in automatic thermal overload protection, which monitors motor temperature in real time to prevent overheating and burnout, supporting continuous operation to meet high-intensity water supply needs. At the same time, this multi-stage centrifugal pump achieves high pressure and high head water delivery with low power consumption, balancing operational stability and energy efficiency. The silent design also avoids disturbing daily life.

Technical Specifications

1. Operating Conditions

- Liquid Temperature: Maximum 60℃

- Ambient Temperature: Maximum 40℃

- Maximum Suction Head: Maximum 8m

2. Motor Parameters

- Motor Type: Two-pole induction motor, 2850 rpm

- Insulation Class: B/F

- Protection Class: IP44, excellent waterproof performance, suitable for outdoor use

- Protection Function: Built-in automatic thermal overload protection to prevent motor overheating and burnout

- Voltage Frequency: Single-phase 220V/50Hz, 60Hz available upon request

- Operating Mode: Supports continuous operation

Application Scenarios

- Home Water Supply: Used for boosting household water pressure, providing stable water pressure for daily use such as showering, washing clothes, and flushing toilets. Can be used with rainwater, greywater, or groundwater to reduce reliance on tap water;

- Garden Irrigation: Suitable for irrigation needs in home gardens, small vegetable gardens, etc., efficiently delivering irrigation water and saving labor costs;

- Rainwater Harvesting and Utilization: Can pump rainwater from rainwater collection tanks for non-potable uses such as irrigation and cleaning, promoting energy conservation and environmental protection;

- Light Commercial and Industrial Use: Suitable for high-pressure water supply systems, agricultural irrigation, and swimming pool applications, meeting diverse water supply needs.

Supply and Quality Assurance

TRUPOW, as a reliable supplier specializing in the production and supply of multi-stage water pumps, offers products directly from our factory in China, eliminating intermediaries and ensuring high cost-effectiveness. We fully support OEM customization services, allowing for product specifications to be tailored to customer needs, and provide free samples for customer testing. In terms of supply, we offer flexible minimum order quantities to meet both bulk purchase needs and small-batch orders, accommodating the procurement needs of various customers.

For quality assurance, each TRUPOW Multi Stage Water Pump Auto Garden Household Rain Tank Irrigation comes with a 2-year warranty. The product manufacturing process strictly adheres to factory quality control standards, using high-quality materials and exquisite craftsmanship to ensure the equipment can withstand continuous, high-intensity operation. At the same time, we leverage our efficient global logistics network to ensure rapid product delivery worldwide and provide timely and convenient after-sales support to our customers. We are committed to achieving the optimal balance between cost and quality, creating long-term value for our customers.

PARAMETER DATA:
