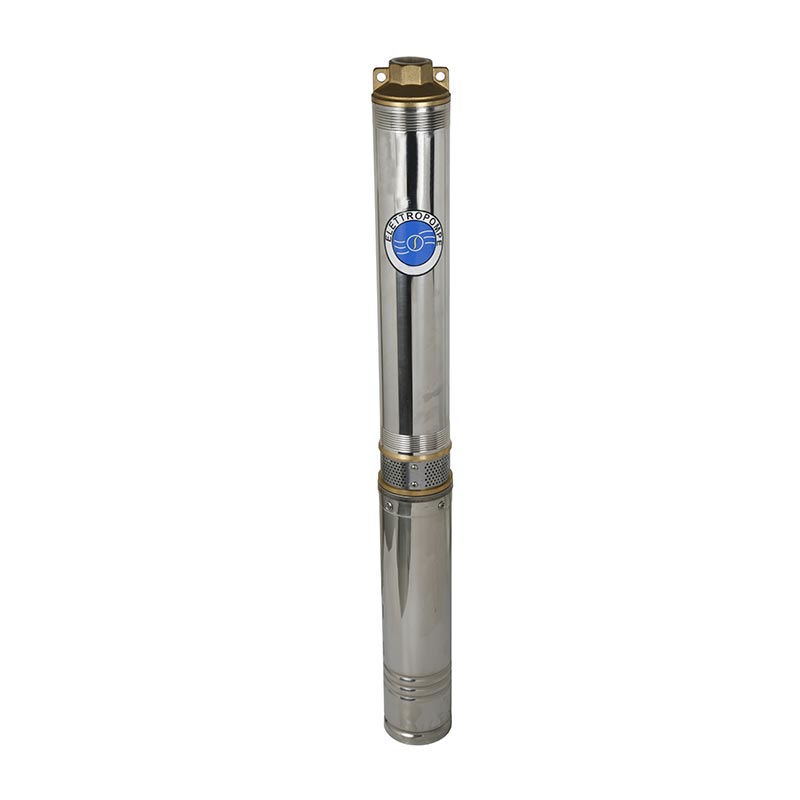

High Pressure Electric Agricultural Submersible Deep Well Pump

The TRUPOW High Pressure Electric Agricultural Submersible Deep Well Pump is a compact, integrated pumping device with excellent sealing performance. Its core design allows it to operate completely submerged in the liquid being pumped, typically installed inside deep wells or boreholes, eliminating the need for additional ground-level installation space. Its core components consist of a multi-stage centrifugal pump and a waterproof motor, tightly connected. The motor features a fully sealed protective design, effectively preventing groundwater corrosion and ensuring long-term stable operation underwater. It is an ideal alternative to surface pumps for deep water source pumping.

Working Principle

The core principle of this High Pressure Electric Agricultural Submersible Deep Well Pump is to convert the rotational kinetic energy of the motor into the kinetic and pressure energy of the liquid, enabling the extraction and transportation of deep water. The specific operation process is as follows: Water enters the pump body through the inlet filter and is accelerated by a series of rotating impellers; each impeller further increases the water pressure.

Through continuous pressurization by multiple impellers, the water flow gains sufficient thrust to overcome the deep water pressure resistance, allowing it to be drawn from hundreds of feet (or meters) deep wells and finally transported to the surface through the outlet pipe, meeting various water supply and irrigation needs. This multi-stage pressurization design gives the equipment extremely strong deep-water pumping capabilities, far exceeding traditional surface pumps.

Application Scenarios

The TRUPOW High Pressure Electric Agricultural Submersible Deep Well Pump is primarily used for extracting groundwater and is suitable for various applications.  Core applications include:

- Agriculture: Farmland irrigation, livestock watering, solving deep-water supply problems in agricultural production, and meeting the water supply needs of large-scale farms and remote ranches;

- Civil use: Residential housing, centralized water supply in rural areas, providing a stable supply of domestic water to areas lacking surface water sources;

- Industrial use: Water supply for industrial production, increasing pressure in water supply systems, meeting the stable requirements for water volume and pressure in industrial production;

- General scenarios: Various clean water transportation scenarios, adaptable to different deep water sources, offering strong versatility.

Operating Conditions

To ensure stable and efficient operation of the equipment, the following operating conditions must be met:

- Liquid temperature: Maximum temperature not exceeding 35℃, suitable for normal temperature groundwater transportation;

- Submersion depth: Maximum submersion depth of up to 40 meters, suitable for medium-deep well scenarios;

- Well requirements: Minimum inner diameter of the wellhead should not be less than 102mm to ensure smooth installation and operation of the pump;

- Operating mode: Supports continuous operation, meeting long-term water pumping needs without frequent shutdowns.

Core Configuration (Motor and Materials)

1. Motor Configuration

The motor, as the power core of the equipment, adopts a high-quality design to ensure sufficient power and stable operation:

- Motor type: Two-pole induction motor, with a speed of up to 2850 revolutions per minute, providing strong and stable power output;

- Protection function: Built-in overload motor protector, effectively preventing motor damage due to overload and overheating, extending service life;

- Insulation class: B/F insulation class, excellent insulation performance, suitable for underwater humid environments;

- Protection level: IP68 fully sealed protection, completely isolating groundwater and preventing motor short circuits due to water ingress.

2. Material Selection

All components of the equipment are made of high-quality materials, balancing durability and corrosion resistance, and are suitable for long-term immersion in groundwater:

- External pump body, inlet filter, shaft, and motor housing: all made of stainless steel, providing corrosion and wear resistance, extending the equipment's service life;

- Impeller and diffuser: made of Noryl material, lightweight and high-strength, improving pumping efficiency;

- Bearing bracket: made of brass, wear-resistant and with good thermal conductivity, ensuring smooth operation of the components;

- Mechanical seal: made of ceramic/graphite material, providing excellent sealing performance and effectively preventing groundwater from entering the motor.

Supply and Quality Assurance

TRUPOW, as a professional manufacturer, focuses on the research and development and production of high-quality submersible pumps.  Our factory is located in China, and through a direct factory supply model, we eliminate intermediaries and provide customers with cost-effective products. We support OEM customization services, adjusting product parameters according to customers' specific needs, and provide free samples for customers to test product performance in advance.

In terms of order supply, we have flexible minimum order quantities to meet both bulk and small-batch purchasing needs, adapting to different customer purchasing scenarios. Every TRUPOW submersible pump undergoes rigorous factory testing and comes with a 2-year quality warranty.  Furthermore, we utilize an efficient global logistics network to ensure fast global delivery of products to our customers.

As a trustworthy supplier, TRUPOW is committed to balancing cost and quality, employing robust structural design and high-quality materials to ensure that our products can withstand continuous, high-intensity operation, providing long-term value to our customers and helping global customers solve deep-well pumping challenges.

PARAMETER DATA:
