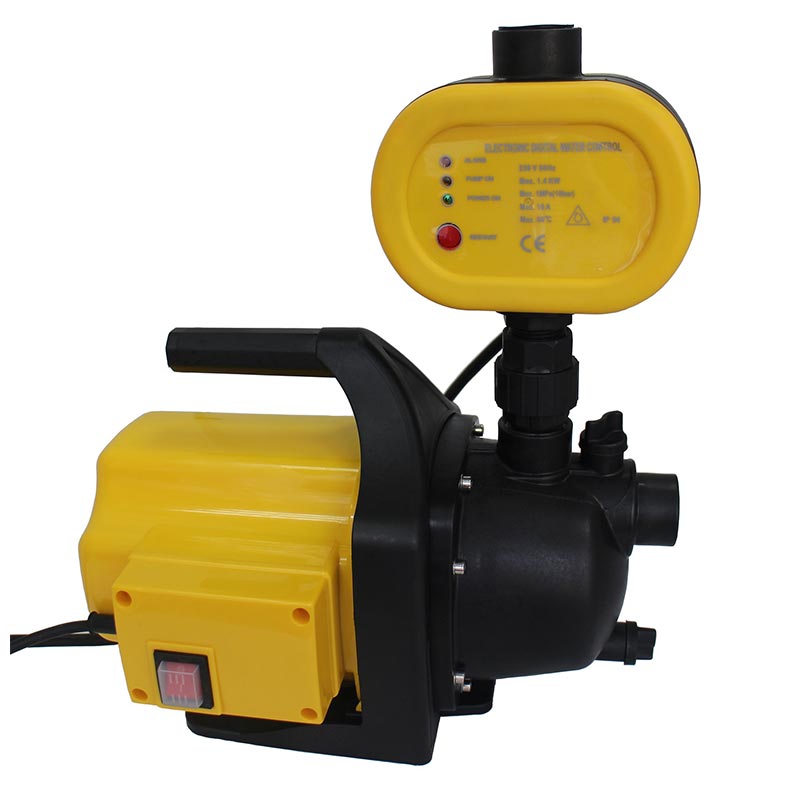

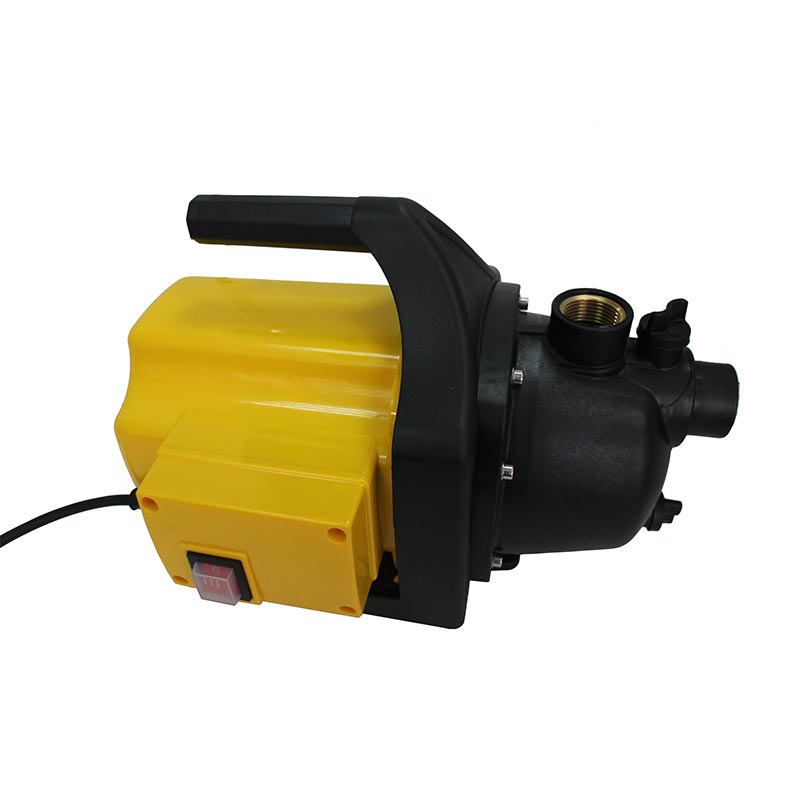

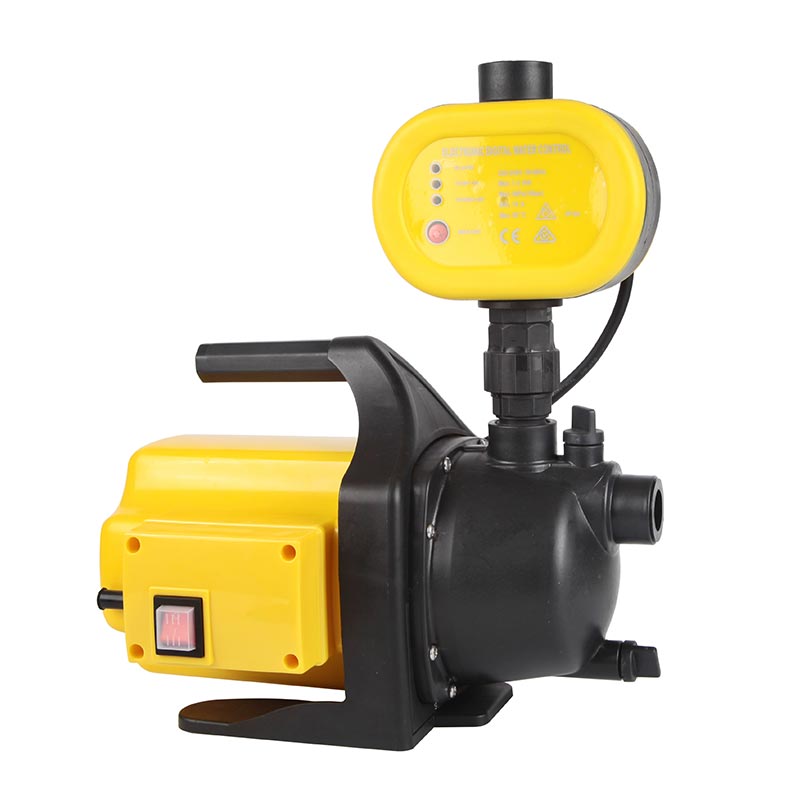

Electric Garden Pump with Pressure Controller

TRUPOW, as a professional water pump manufacturer, consistently focuses on the research and development of outdoor water equipment, and this Electric Garden Pump with Pressure Controller (model: TP03077~TP03080) is one of the brand's core products. The product aims to simplify garden irrigation and household water transfer processes, becoming a comprehensive solution for outdoor water resource management with its user-friendly design and reliable performance.

The Electric Garden Pump with Pressure Controller combines powerful performance with energy efficiency, easily drawing water from wells, rain barrels, or ponds, and adapting to various outdoor water scenarios. Its compact and durable structure is suitable for complex outdoor environments, and the pressure controller effectively prevents over-pumping, protecting the motor from damage. Whether for home gardening or small-scale outdoor cleaning tasks, this water pump significantly improves water efficiency and reduces operational complexity with its precise pressure control and stable operation.

Key Features:

1. Smart Pressure Control, Hassle-Free and Efficient

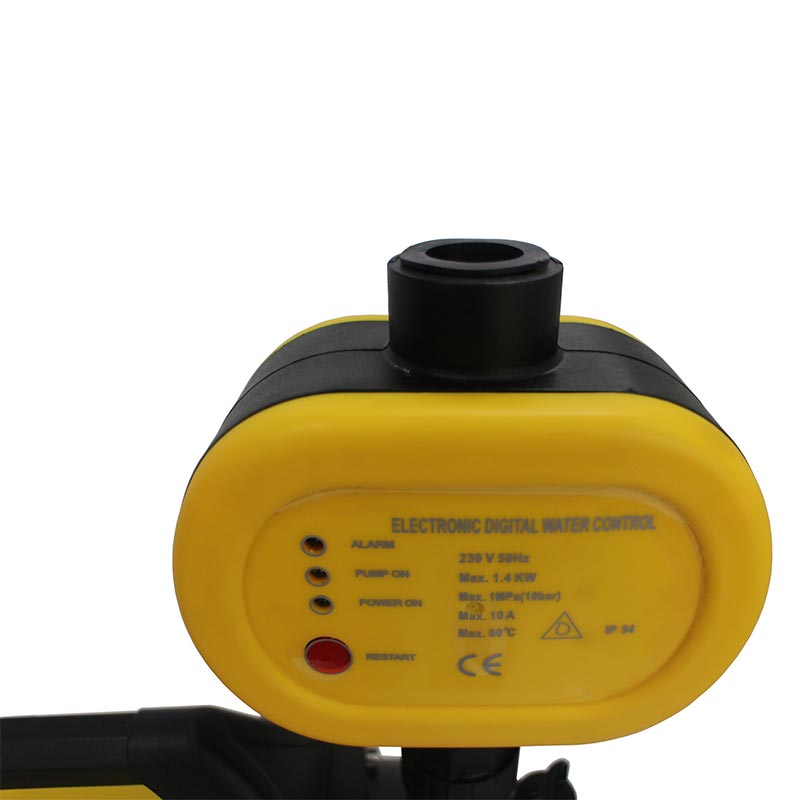

The built-in automatic digital electronic pressure switch monitors water pressure changes in real time and adjusts automatically, maintaining a constant pressure output. This eliminates the need for manual adjustment and effectively reduces water hammer effects in the supply pipes, protecting the piping system. The pressure controller also features an over-pumping protection function, protecting the motor in abnormal conditions and extending the equipment's lifespan.

2. Powerful Performance and Energy Efficiency

Equipped with a two-pole induction motor (2900 rpm), it delivers powerful performance with a maximum suction head of up to 7m, easily drawing clean water from wells, rain barrels, or ponds.  It also features an energy-efficient design, maintaining low energy consumption even during continuous operation, balancing performance and environmental protection.

3. High-Quality Materials, Durable and Robust

The Electric Garden Pump with Pressure Controller is constructed with carefully selected high-quality materials. The pump body is made of corrosion-resistant PP material, the motor bracket is made of sturdy aluminum alloy, the impeller is available in PP or brass, the diffuser is made of temperature and pressure-resistant Noryl material, the shaft and rotor are made of 45# steel (stainless steel available upon request), and the mechanical seal is a carbon/ceramic combination, ensuring long-term stable operation in complex outdoor environments. The motor has a B/F insulation class and IPX4 protection rating, effectively resisting water splashes and adapting to ambient temperatures up to 40°C and liquid temperatures up to 60°C.

4. Easy Installation and Simple Operation

The Electric Garden Pump with Pressure Controller features an integrated, compact design, making it small and lightweight. Installation and commissioning can be completed without professional tools. Clear operating instructions and a simple control interface allow users of varying experience levels to quickly get started, truly providing a "plug-and-play" experience.

Technical Specifications

1. Operating Conditions

Maximum liquid temperature: 60℃; Maximum ambient temperature: 40℃; Maximum suction lift: 7m; Suitable for continuous operation

2. Motor Parameters

Two-pole induction motor, speed 2900 r.p.m.; Insulation class B/F; Protection class IPX4

3. Material Configuration

Pump body: PP; Motor bracket: Aluminum alloy; Impeller: PP/Brass; Diffuser: Noryl; Shaft and rotor: 45# steel/customized stainless steel; Mechanical seal: Carbon/Ceramic

4. Core Features

Self-priming jet pump with excellent hydraulic performance and considerable pressure capacity; Equipped with automatic digital electronic switch for precise pressure control

PARAMETER DATA:

Application Scenarios

- Garden Irrigation: Provides a uniform and stable water flow for lawns, flowerbeds, and vegetable gardens through sprinklers, hoses, or drip irrigation systems, ensuring plant growth;

- Outdoor Cleaning: Cleans patios, driveways, cars, or garden furniture with stable pressure, easily removing stains;

- Water Transfer and Filling: Fills outdoor swimming pools, fountains, or water features, and can also transfer water from rain barrels or wells to garden watering areas;

- Outdoor Faucet Pressure Boosting: Increases water pressure for outdoor sinks or garden faucets, improving the user experience.

Cooperation and Guarantee

Our factory has a complete production system and strict quality control processes, ensuring that every product leaving the factory meets international quality standards. As a professional supplier, we provide comprehensive cooperation support to global customers, including product customization, technical consulting, and after-sales service. TRUPOW always focuses on customer needs, leveraging manufacturing capabilities and innovative technologies from China to provide global users with higher quality and more reliable outdoor water solutions.
