The TRUPOW electric diesel fuel transfer pumps with counter and automatic nozzle is designed for efficient fuel transfer, easily drawing diesel, biodiesel, kerosene, and fuel oil from storage tanks or drums. It is widely used for refueling machinery and vehicles such as tractors, and for transferring various fuels between tanks. The pump features an integrated design, equipped with a delivery hose and fuel nozzle, ready for immediate use out of the box without complex assembly, greatly enhancing operational convenience.
The TRUPOW electric diesel fuel transfer pumps with counter and automatic nozzle can transfer diesel, biodiesel, kerosene, and vegetable oil, but is strictly prohibited for use with gasoline or other flammable or low flash point liquids. The product features a high-quality 550W all-copper motor with self-priming capabilities, a maximum flow rate of up to 60 liters/minute, and is equipped with a precise flow meter and automatic shut-off nozzle, ensuring both transfer efficiency and operational safety. Its compact design provides excellent portability and installation adaptability, allowing it to flexibly adapt to different operating environments and configuration requirements, making it an ideal choice for fuel transfer in various industries.
The pump body is equipped with a high-quality 550W 100% all-copper motor with a speed of up to 2850 rpm, providing powerful yet energy-efficient performance. The built-in check valve effectively prevents fuel backflow, significantly improving transfer efficiency; constructed from high-quality materials such as steel and copper, the structure is robust and durable, while also being lightweight and easy to install, ensuring long-term stable operation and adapting to diverse operating configurations.
The electric diesel fuel transfer pumps with counter and automatic nozzle is made of cast iron, treated with anti-corrosion and painted, providing excellent corrosion resistance and extending the equipment's service life in complex environments. It features a built-in motor overload protector to effectively prevent motor damage due to overload; the maximum allowable conveying medium temperature is 35℃, and dry running is strictly prohibited. The product is compact, easy to install, operate, and maintain, and operates with low noise, creating a comfortable working environment for users.
A built-in bypass valve effectively protects the motor from burning out in case of pump blockage, improving the reliability of the equipment. The equipped automatic shut-off nozzle automatically stops fuel supply when the vehicle's fuel tank is full, preventing fuel overflow and leakage, reducing harmful gas emissions, and ensuring operational safety and environmental cleanliness. In addition, the product has passed CE, EMC, and other international certifications, fully complying with international safety standards, electromagnetic compatibility requirements, and relevant regulations, ensuring peace of mind during use.

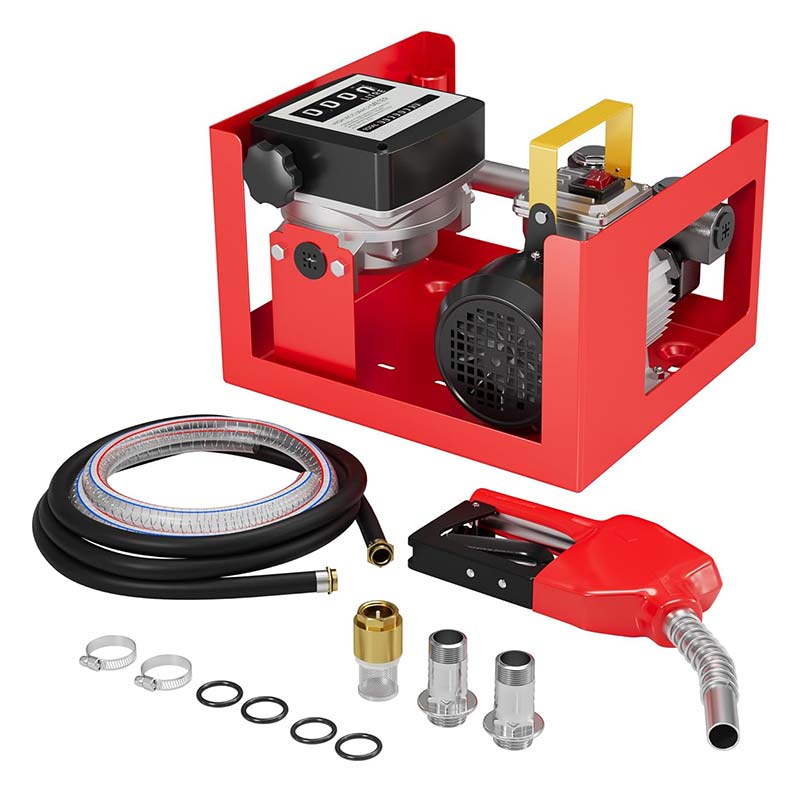

The electric diesel fuel transfer pumps with counter and automatic nozzle includes all core components, eliminating the need for additional accessories: 1. 60 liters/minute flow rate pump body; 2. Aluminum alloy flow meter (flow range 20-120 liters/minute, accuracy up to ±1% after calibration); 3. Automatic shut-off nozzle; 4. 4-meter delivery hose with crimped connectors; 5. 2-meter suction hose; 6. Brass check valve; 7. 2 hose clamps, 2 metal connectors, and 4 O-rings, meeting the needs of various conventional fuel transfer scenarios.
| Parameter Name | Parameter Value |
| Model | TP04021 |
| Voltage | 230V/50Hz |
| Rated Power | 550W |
| Max. Flow Rate | 60L/min |
| Max. Delivery Height | 25m |
| Self-priming Height | 2m |
| Max. Working Pressure | 3 bar |
| Speed Range | 2850 r/min |
| Packing Dimension | 44x38x36cm/piece |
| Packaging Method | 1 piece/carton |
| N.W./G.W. | 18/19.1KGS |
TRUPOW , as a professional supplier, owns its own factory, supplying high-quality diesel transfer pumps directly from the factory to customers worldwide, eliminating intermediaries and ensuring cost-effectiveness. We fully support OEM customization services, adjusting product configurations according to customer needs, and providing free samples for customer testing. We offer flexible minimum order quantities to meet various procurement needs, whether for bulk purchases or small-batch customization.
Each pump comes with a 2-year warranty. The products are manufactured under strict quality control standards, utilizing robust structural designs and high-quality materials to ensure the equipment can withstand continuous, high-intensity operation. Leveraging our efficient global logistics network, we provide fast and reliable worldwide delivery, ensuring timely service for our customers. TRUPOW Electric is committed to achieving the optimal balance between cost and quality, creating long-term value for our customers and earning their trust and recognition worldwide.
