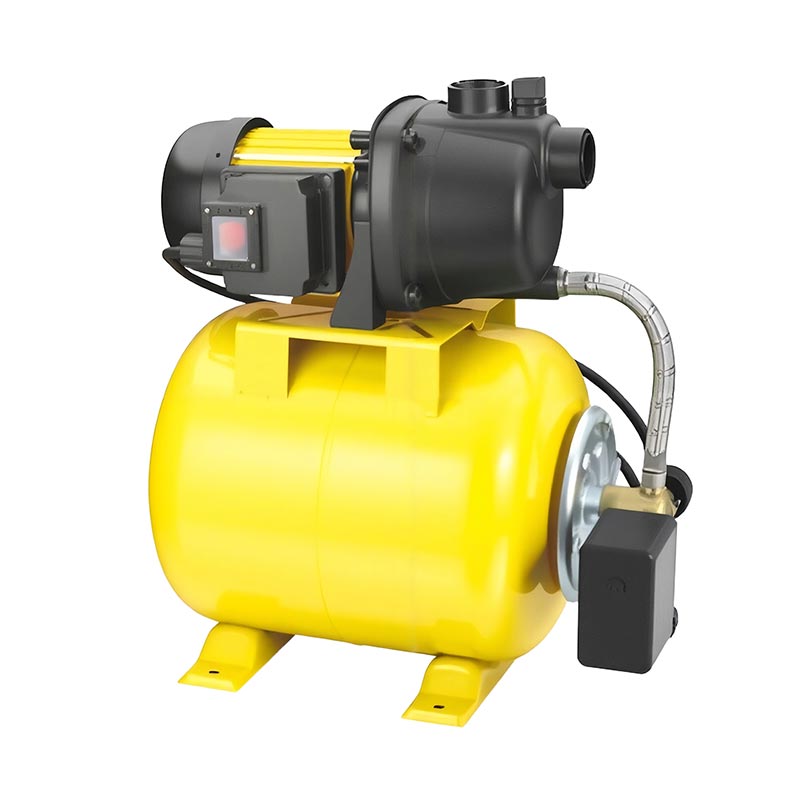

Garden Electric Shallow Well Jet Pump with Pressure Water tank

Constructed from corrosion-resistant and wear-resistant high-quality materials, the Garden Electric Shallow Well Jet Pump with Pressure Water Tank is suitable for various applications including household use, agricultural irrigation, and commercial water supply. The product is certified by UL, ETL, CE, and other international standards, supports OEM/ODM customization, and comes with a 2-year warranty and fast global logistics services provided by a professional team, making it a cost-effective choice for water supply needs of different scales.

Product Core Advantages:

This Garden Electric Shallow Well Jet Pump with Pressure Water Tank is designed for efficient and long-lasting water delivery. Its core performance and structural design combine practicality and durability, making it suitable for long-distance water transfer in various scenarios.

1. High-Efficiency Performance

Equipped with a 1.0HP (750W) high-power motor, achieving a maximum flow rate of 1000 GPH (3700 L/H), a maximum head of 164FT (50M), and a suction lift of 26.3FT (8M).  The intelligent start-stop design with automatic start at 20 PSI and automatic shut-off at 40 PSI effectively reduces pump cycling frequency and lowers energy consumption.

2. Quality Construction

The pump head is made of thermoplastic material, the water tank is a 5-gallon (19-liter) electrostatically coated steel structure, the pump body is available in plastic/stainless steel, the motor is made of cast iron and filled with oil for cooling, the impeller is a thermoplastic vortex type, and the rotating shaft is made of 45# carbon steel. All components have excellent anti-corrosion, wear-resistant, and anti-deformation properties. The ceramic-sealed motor shaft prevents water contamination, ensuring clean water output.

3. Convenient Operation

Equipped with a built-in pressure gauge for real-time monitoring of water tank pressure, the slide valve design simplifies the operation process. The pump is self-priming after initial filling and is factory pre-assembled.  It comes with 1" NPT inlet and outlet, 3/4" garden hose connector, and PTFE tape for easy installation. The compact design also enhances the portability of the equipment.

Applicable Application Scenarios

TRUPOW's Garden Electric Shallow Well Jet Pump with Pressure Water Tank features a multi-functional design with a pressure tank, meeting diverse water supply and pressurization needs for residential, agricultural, and small commercial applications. Core application scenarios include: shallow well freshwater supply for residential homes, farms, and cabins; daily water transfer for agricultural buildings; water pressure boosting in low-pressure environments; irrigation and water replenishment for gardens and lawns; and water transfer operations for various water tanks. The equipment operates quietly and is suitable for various indoor and outdoor installation environments. With proper anti-freezing measures in winter, it can be used reliably for a long time.

Core Technical Parameters

1. Model: GP613DP/S~GP1213DP/S

2. Motor Parameters: 1.0 HP (750W), fully enclosed fan-cooled, cast iron material, oil-filled for heat dissipation, 45# carbon steel rotor shaft

3. Performance Parameters: Maximum flow rate 1000 GPH (3700 L/H), maximum head 164 FT (50 M), suction lift 26.3 FT (8 M), start/stop pressure 20PSI/40PSI

4. Structural Parameters: 5-gallon (19-liter) steel pressure tank, thermoplastic pump head/plastic/stainless steel pump body, thermoplastic vortex impeller

5. Interface Parameters: 1" NPT inlet and outlet, standard 3/4" garden hose adapter + PTFE tape

6. Product Certification: UL, ETL, CE, GS international certifications

Supply and Service Guarantee

As a professional manufacturer deeply rooted in the water pump field, TRUPOW, based in China, possesses a vertically integrated production line from R&D and manufacturing to assembly, with strict quality control throughout the entire process, ensuring the consistent quality of every product.  We are a trustworthy water pump supplier for customers worldwide.

1. Customization Services

Supports OEM/ODM customization, flexible minimum order quantities, and provides professional design and engineering technical support to meet customers' personalized needs;

2. Quality Assurance

All Garden Electric Shallow Well Jet Pumps with Pressure Water Tanks are certified to international standards such as UL, ETL, CE, and GS, and come with a 2-year warranty, including professional technical support, timely repair services, and replacement of defective parts, ensuring continuous and stable operation of the equipment;

3. Logistics and Delivery

Factory direct supply model, with a mature global supply chain and strategic logistics partners, supporting various transportation methods such as air freight, sea freight, and express delivery. Efficient order processing, with delivery to most markets within 5-15 business days;

4. Flexible Supply

Capable of handling large bulk orders and small batch orders. Factory direct pricing is competitive in the market, providing cost-effective water pump solutions for distributors, retailers, and end-users.

PARAMETER DATA:
